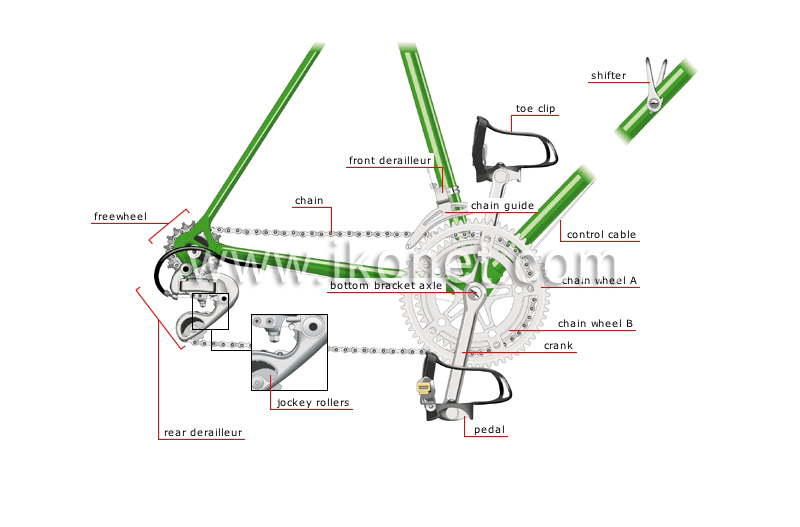

power train click to hear : power train

Set of parts (axle, chain wheel, cranks and pedals) transmitting the force exerted by the cyclist on the pedals to the rear wheel.
power train image
achat d'image achat d'image

See power train in : french | spanish
rear derailleur front derailleur shifter chain pedal crank chain wheel B bottom bracket axle chain wheel A control cable freewheel chain guide toe clip jockey rollers

rear derailleur click to hear : rear derailleur

Mechanism for changing the rear gears by lifting the chain from one gear wheel to another; it allows the cyclist to adapt to road conditions.

front derailleur click to hear : front derailleur

Mechanism for changing the front gears by lifting the chain from one chain wheel to another; it allows the cyclist to adapt to road conditions.

shifter click to hear : shifter

Lever for changing gears via a cable moving the derailleur.

chain click to hear : chain

Set of metal links meshing with the sprockets on the chain wheel and gear wheel to transmit the pedaling motion to the rear wheel.

pedal click to hear : pedal

Part attached to a crank that the cyclist rotates to provide the bicycle’s power.

crank click to hear : crank

Metal part bent at a right angle, supporting a pedal and providing a rotational movement around the pedal’s axle.

chain wheel B click to hear : chain wheel B

Smaller wheel with sprockets that, in combination with the rear gear wheels, decreases the distance of one rotation of the pedal.

bottom bracket axle click to hear : bottom bracket axle

Tube to which the crank is attached at each end so that one end is up when the other is down.

chain wheel A click to hear : chain wheel A

Larger wheel with sprockets that, in combination with the rear gear wheels, increases the distance of one rotation of the pedal, and therefore the speed of the bicycle.

control cable click to hear : control cable

Wire made of steel strands transmitting the action exerted on the shifter to each derailleur.

freewheel click to hear : freewheel

Mechanism attached to the rear-wheel hub allowing it to continue turning when the cyclist stops pedaling.

chain guide click to hear : chain guide

Part of the derailleur moving the chain from one chain wheel to the other.

toe clip click to hear : toe clip

Metal device attached to the pedals that covers the front of the feet, keeping the feet in the proper position and increasing pedaling power.

jockey rollers click to hear : jockey rollers

Small wheels guiding the chain and keeping it taut while changing gears.
